SKAALA A/TRA PLOWS
As wide as you need
The Skaala Plows are fixed-wing plows that can be hydraulically widened. They are suitable for a multitude of tasks and sites. Skaala Plows are most effective in work, which involves pushing snow for longer distances.
There are available two Skaala models, A-model and TRA-model. Both has same features, but dimensions and capacities are little different. TRA plow`s double chassis enable wider work capacity than A plows. User could say that those are getting wider and wider so the working width is very big. When TRA models working width is wider so therefore those are also heavier and mainly intended for big wheel loaders. But both models has several size classes include plows for large terminals as well as for e.g. busy and tight parking lots.
The Skaala A Plows are controlled either hydraulically or electro-hydraulically. Controls are customised to your needs when making the order.
Image 1 and 2: Skaala 24-40A plow at its narrowest; 2,4 m and at its widest; 4,0 m.
Known for their durability
The construction of the Skaala Plows is very simple, strong and robust. There are very few parts that can wear or break. These features become apparent during the years, as the need for spare parts is very small. Skaala Plows are made to last. Their fixed front plate protects the base machine, as there is no sideway torque as with turning plows.
The Skaala Plows have been made for tough use. The materials have been chosen in such a way that strong, hard-wearing materials are used where there is actual need for them. NEW Starting in autumn 2024, at the request of our customers, the largest Skaala plows (24-46TRA, 28-53TRA and 30-58TRA) have thicker comb blades made of wear steel as standard. The blades of these plows are subject to the most severe wear. This innovation extends the use of these large Skaala plow blades.
The open frame structure prevents the Skaala Plow from freezing. This means no more problems with ice during plowing. Ease of maintenance, e.g. greasing, has also been taken into account in the design of the Skaala Plow. This can be seen in everyday use; all maintainable parts are easy to access.

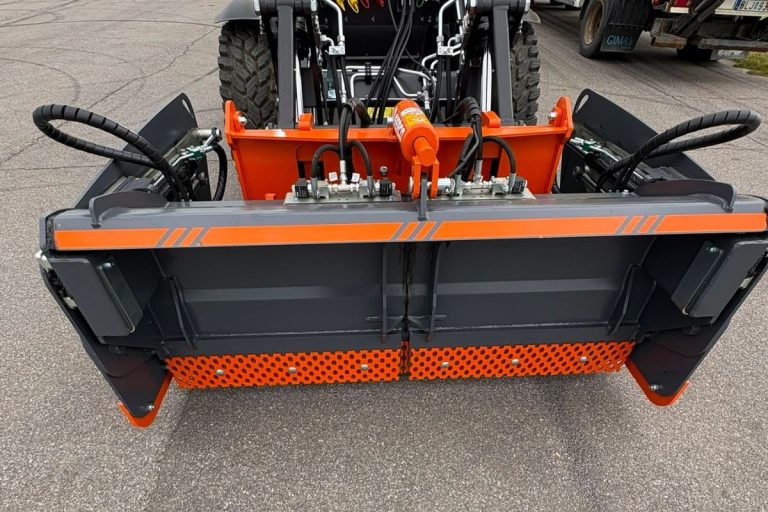

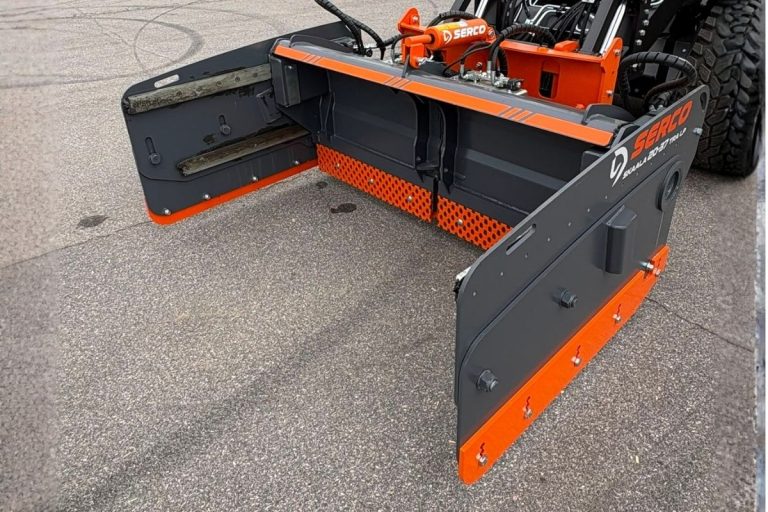

Image 3 and 4: NEW Starting in autumn 2024, at the request of our customers, the largest Skaala plows (24-46TRA, 28-53TRA and 30-58TRA) have thicker comb blades made of wear steel as standard.
Saves time and money
Skaala Plows are a cost-effective, time and money-saving choice for most uses in which it is necessary to plow snow.
Skaala Plows are quick and efficient. Skaala Plows have no bottom, so emptying it is fast. Just lift up the plow and back away from the pile.
User-friendly features and a neat plowing finish
All Skaala Plows are equipped with spring-loaded side blades and a floating, spring-loaded quick coupler. This ensures that the plow will stay on the ground even on uneven surfaces and conforms to the shape of the surface. The springs press the side blade firmly onto the surface, which also guarantees a neat finish.
Except for the big Skaala plows (24-46TRA, 28-53TRA and 30-58TRA), in other Skaala plows the hole spacing of the front plate blade mounting bolts is standard. So you can choose a suitable blade option from the spare parts store in your hometown. For the largest TRA plows, thicker comb blades that are extremely wear-resistant have been selected as standard. They and the side wing blades of all plows have been specially designed for the Skaala plow, so you can easily order them directly from our dealers.
The plow is quick to attach using the spring-loaded quick coupler. This makes adjusting the position easier and transporting the plow between sites more pleasant.
Can be attached to various base machines
The Skaala A/TRA Plows can be attached to various base machines. The floating spring-loaded quick coupler ensures pleasant days and nights plowing. The plows are available with all the most common quick couplers, so the Skaala A/TRA Plow is sure to be compatible with your machine.
Sizes for A-models:
| Model | Product number | Working width (min. / max.) | Total width (min. / max.) | Wing length | Height | Weight (incl. coupling) | Recommended weight of base machine | |
|---|---|---|---|---|---|---|---|---|
| Request an offer | Skaala 14-23A | 603881 | 1400-2300 mm | 1550-2450 mm | 650 mm | 600 mm | 560 kg | 2-4 tons |
| Request an offer | Skaala 16-26A | 603882 | 1600-2600 mm | 1750-2750 mm | 650 mm | 600 mm | 620 kg | 3-4 tons |
| Request an offer | Skaala 17-28A | 603883 | 1700-2800 mm | 1850-2950 mm | 850 mm | 700 mm | 750 kg | 3-4,5 tons |
| Request an offer | Skaala 19-30A | 603884 | 1900-3000 mm | 2050-3150 mm | 900 mm | 800 mm | 850 kg | 4-8 tons |
| Request an offer | Skaala 22-36A | 603885 | 2200-3600 mm | 2350-3750 mm | 1100 mm | 1000 mm | 1100 kg | 7-8 tons |
| Request an offer | Skaala 24-40A | 603886 | 2400-4000 mm | 2550-4150 mm | 1100 mm | 1000 mm | 1250 kg | 8-9 tons |
Sizes for TRA-models:
| Model | Product number | Working width (min. / max.) | Total width (min. / max.) | Wing length | Height | Weight (incl. coupling) | Recommended weight of base machine | |
|---|---|---|---|---|---|---|---|---|
| Request an offer | Skaala 18-34TRA | 603888 | 1800-3400 mm | 1950-3550 mm | 1000 mm | 800 mm | 900 kg | 4-8 tons |
| Request an offer | Skaala 19-37TRA | 603889 | 1900-3700 mm | 2050-3850 mm | 1250 mm | 1000 mm | 1360 kg | 7-8 tons |
| Request an offer | Skaala 24-46TRA | 603890 | 2400-4600 mm | 2550 – 4750 mm | 1250 mm | 1000 mm | 1650 kg | over 9 tons |
| Request an offer | Skaala 28-53TRA | 604756 | 2800-5300 mm | 2966-5466 mm | 1400 mm | 1200 mm | 2000 kg | over 10 tons |
| Request an offer | Skaala 30-58TRA | 603893 | 3000-5800 mm | 3150-5950 mm | 1400 mm | 1200 mm | 2400 kg | over 11 tons |
Skaala plow at work:
Technical information
Features:
– Fixed wings, plow is not turning, only widening
– Vertical and tilt flotation
– Spring loaded side blades
Hydraulic:
– Standard delivery with one hydraulic hose pair without valves (symmetrical widening)
– Hydraulic connectors according to your choice (remember to inform at order)
Price include:
– hydraulic connectors according your choice
– floating coupling
– main blade:
> Skaala 24-46TRA, 28-53TRA and 30-58TRA in plows: comb blades made of wear steel
> in other Skaala ploughs: standard bolt-on mesh blade
– spring loaded side wings
– side blades made from wear steel HB 400
– one hydraulic hose pair (symmetrical widening)
– quick coupling according your choice
The color of plow is RAL7024 (dark grey).
Download SERCO Skaala A plow`s brochure by clicking the picture:
Download SERCO Skaala TRA plow`s brochure by clicking the picture:
